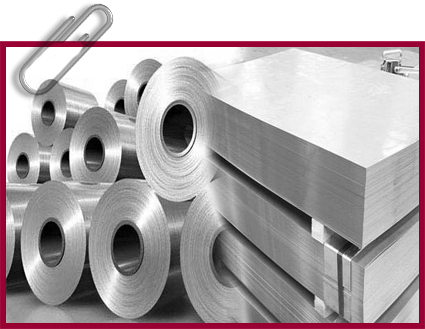

Sheets and Plates

SHEETS & PLATES

Seamless / ERW Stainless Steel Pipes are extensively used for conveyance of fluids intended for critical high temperature and general. Seamless SS Tubes are used in under similar service conditions in heat transfer process equipments like boilers, super heaters, heat exchangers, condensers etc.

User Industries :

Chemicals, Fats & Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Petrochemicals, Oil & Natural Gas Organization in terms of the specific materials, Technology, Finance & Personal.

Product Range :

The following table represents size rang, product standards and materials grades of Seamless Stainless Steel Pipes & Tubes.

DESCRIPTION	SIZE RANGE	SPECIFICATION	GRADES
S.S. Seamless Pipes / Tubes	1/4" NB to 16" NB SCH 5, SCH 10, SCH 20, SCH 40, SCH 80, SCH 160, SCH XXS.	ASTM A-312 ASTM A-213 ASTM A-269	TP-304, 304L, 316, 316L, 316H, 316 Ti 309, 310, 321.
S.S. Welded Pipes / Tubes	1/4" NB to 20" NB SCH 5, SCH 10, SCH 20, SCH 40, SCH 80, SCH 160, SCH XXS.	ASTM A -312 ASTM A -249 ASTM A -269 ASTM A -358	TP-304, 304L, 316, 316L, 316H, 316Ti, 309, 310, 321.

===========================================================

➲ Stainless & Duplex Steel

RANGE

0.1 mm to 100 mm thick upto 2500 mm width & upto 8000 mm length available with NACE MR 01-75s.

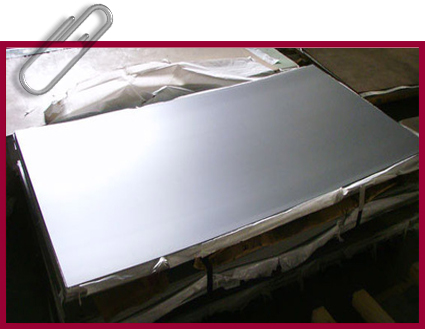

Stainless Steel

ASTM / ASME SA 240 304 , 304L , 304H, 309S , 309H, 310S , 310H , 316 , 316H , 316L , 316 TI , 317 , 317L , 321 , 321H , 347 , 347 H , 409 , 410 , 410S , 430

Duplex Steel

ASTM / ASME SA 240 UNS NO. S 31803 , S 32205 , S 32550 , S 32750 , S 32760.

===========================================================

➲ Carbon & Alloy Steel

RANGE

3 mm to 100 mm thick in upto 2500 mm width upto 12500 mm length available with NACE MR 01-75s

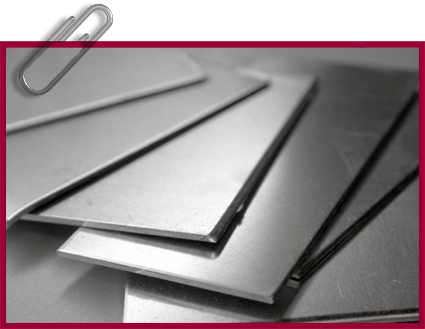

Carbon Steel

ASTM / ASME A 516 / 517 GR. 60 / 70 , IS 2062 , IS 2002

Alloy Steel

ASTM / ASME A 387 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91.

===========================================================

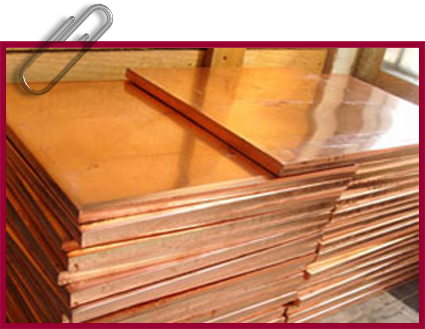

➲ Nickel & Copper Alloy

RANGE

5 mm to 100 mm thick in upto 2500 mm width & upto 6000 length available with NACE MR 01-75s.

Nickel Alloy

ASTM / ASME SB 162 UNS 2200 ( NICKEL 200 ) / UNS 2201 (NICKEL 201 )
ASTM / ASME SB 127UNS 4400 (MONEL 400 )
ASTM / ASME SB 424 UNS 8825 (INCONEL 825)
ASTM / ASME SB 168UNS 6600 (INCONEL 600 ) / UNS 6601 ( INCONEL 601 )
ASTM / ASME SB 443 UNS 6625 (INCONEL 625)
ASTM / ASME SB 574 UNS 10276 ( HASTELLOY C 276 )
ASTM / ASME SB 462 UNS 8020 ( ALLOY 20 / 20 CB 3 )

===========================================================

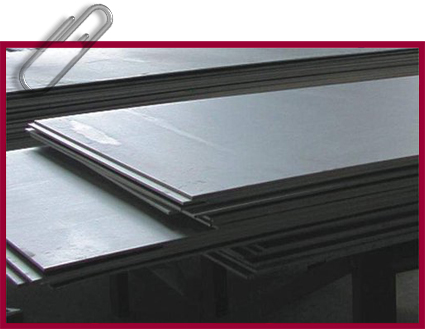

➲ Hastelloy

Grades : Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000

Form:

• Hastelloy Sheet
• Hastelloy Coil
• Hastelloy Strips
• Hastelloy Plates
• Hastelloy Circle
• Hastelloy Ring

===========================================================

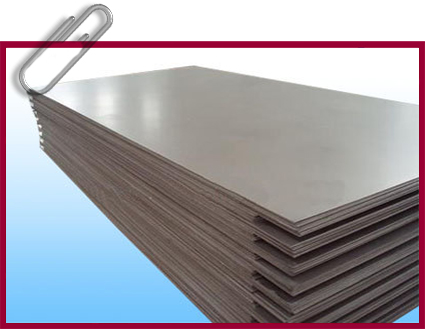

➲ Inconel

Grades :

Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750

Standard: ASTM / ASME SB 168, ASTM / ASME SB 424 , ASTM / ASME SB 443

===========================================================

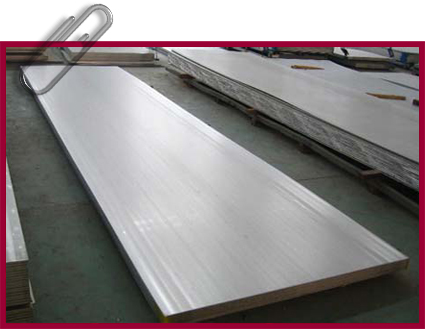

➲ Incoloy

Grades : Incoloy 800, incoloy 825, Incoloy 925, Incoloy a-286, Incoloy DS

Type: Seamless / Erw / Welded/ Fabricated

Standard : ASTM B407, ASTM B829, ASTM B514, ASTM B775, ASTM B515, ASTM B751

This range is used in :

• Petrochemicals Plants
• Oil Refineries
• Fertilizers Plants
• Sugar Mills
• Chemical Plants
• Pharmaceuticals
• Textile Machinery

===========================================================

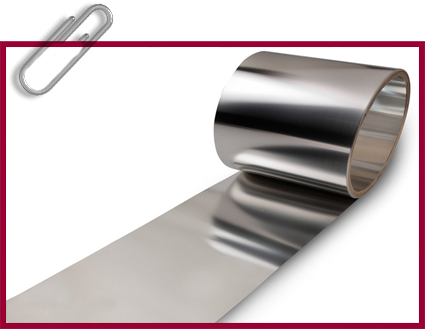

➲ Monel

Grades : Monel 400, Monel k500

Type: Seamless / Erw / Welded/ Fabricated

Form: Round, Square, Rectangular, Hydraulic etc.

Length: Single Random, Double Random & Cut Length

End: Plain End, Beveled End, Threaded

The salient features are as follows :

• Hot Dipped Galvanizing
• Epoxy & Fbe Coating
• Electro Polish
• Draw & Expansion

===========================================================

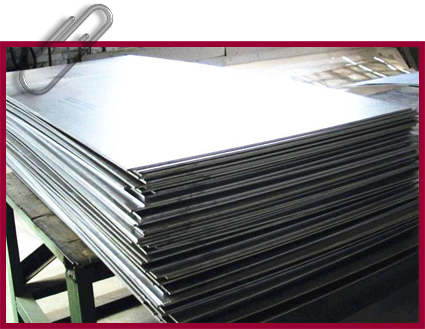

➲ Titanium

Specifications

1)hot and coll rolled, Gr1~Gr23
2)Thickness:0.3mm - 60mm
3)Length:<6000mm
4)ASTM B265,ASTM 4911,F67,F136

1.material:titanium and titanium alloys

pure titanium grade: GR1, GR2, GR3, GR4

titanium alloy grade: GR5 (6% Al, 4%V)

GR6 (5% AL, 2.5%Sn)
Gr.7 (Titanium + Pd)
Gr.9 (3% Al, 2.5%V)
Gr.10 (11.5%Mo, 6% Zr, 4.5% Sn)
Gr.11 (Titanium + Pd)
Gr.12 (0.3% Mo, 0.8% Ni)

COMMON SPECIFICATION	SPECIFICATION	PRODUCT FORM
	ASTM B265(Gr2)	Sheet,Strip and Plate
	ASTM B338	Tube,Seamless and Welded
	ASTM B348(Gr2)	Bars and Billets
	ASTM B861	Seamless Pipe
	ASTM B863	Wire
	ASTM F67(Gr2)	Unalloyed Titanium for Surgical Implants

===========================================================

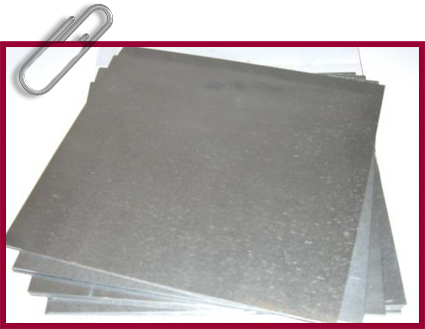

➲ Tantalum

Specifications

tantalum sheet, tantalum plate, tantalum foil

Grade: RO5200, Ro5400,RO5252,RO5255

Standard :ASTM B708-98

Size:T0.1-10.0mm

We are factory specializing in the manufacture and export Tantalum and Niobium prodcut for more than ten years,Including foil tube ,rod,wire,sheet,plate, ,rod,strip,target and so on
We can supply the best quallity and low price.
Tantalum sheets, Tantalum- tungsten alloy sheets(Ta2.5W, Ta10W)

Purity: 99.95%min or 99.99%min conformity with ASTM B 708 98

Size:

	THICKNESS(mm)	WIDTH(mm)	LENGTH(mm)
Foil	0.03-0.09	30-600	100
Sheet	0.1-0.5	30- 609.6	30-1000
Board	0.5-10	50-1000	50-2000

===========================================================
