PIPES & TUBES

Seamless / ERW Stainless Steel Pipes are extensively used for conveyance of fluids intended for critical high temperature and general. Seamless SS Tubes are used in under similar service conditions in heat transfer process equipments like boilers, super heaters, heat exchangers, condensers etc.

User Industries :

Chemicals, Fats & Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Petrochemicals, Oil & Natural Gas Organization in terms of the specific materials, Technology, Finance & Personal.

Product Range :

The following table represents size rang, product standards and materials grades of Seamless Stainless Steel Pipes & Tubes.

DESCRIPTION	SIZE RANGE	SPECIFICATION	GRADES
S.S. Seamless Pipes / Tubes	1/4" NB to 16" NB SCH 5, SCH 10, SCH 20, SCH 40, SCH 80, SCH 160, SCH XXS.	ASTM A-312 ASTM A-213 ASTM A-269	TP-304, 304L, 316, 316L, 316H, 316 Ti 309, 310, 321.
S.S. Welded Pipes / Tubes	1/4" NB to 20" NB SCH 5, SCH 10, SCH 20, SCH 40, SCH 80, SCH 160, SCH XXS.	ASTM A -312 ASTM A -249 ASTM A -269 ASTM A -358	TP-304, 304L, 316, 316L, 316H, 316Ti, 309, 310, 321.

===========================================================

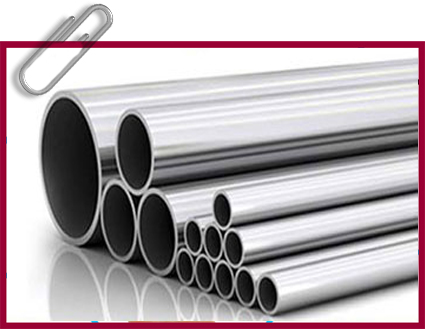

➲ Stainless & Duplex Steel

RANGE : 15 NB UP TO 1200 NB IN SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS.

FORM : SEAMLESS / ERW / WELDED IN ROUND & SQUARE .

Stainless Steel : ASTM / ASME SA 312 GR. TP 304 , 304L , 304H, 309S ,309H , 310S, 310H , 316 , 316TI , 316H , 316 LN , 317 , 317L , 321 , 321H , 347 , 347 H , 904L .ASTM / ASME SA 358 CL 1 & CL 3 GR . 304 , 304L , 304H, 309S ,309H , 310S, 310H , 316 , 316H , 321 , 321H , 347 .

Duplex Steel : ASTM / ASME SA 790 UNS NO S 31803 , S 32205 , S 32550 , S 32750 , S 32760.

===========================================================

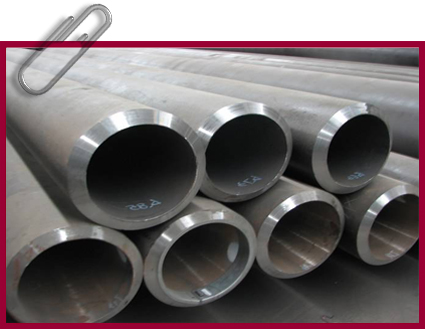

➲ Carbon & Alloy Steel

RANGE : 15 NB UP TO 1200 NB IN SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS

FORM : SEAMLESS / ERW / WELDED IN ROUND & SQUARE .

Carbon Steel :

ASTM / ASME A 53 GR. A , B
ASTM / ASME 106 GR. A , B ,C .
API 5L GR. B , API 5L X 42 , X 46 , X 52 , X 60 , X 70.
ASTM / ASME A 691 GRA , B ,C

Alloy Steel:

ASTM / ASME A 335 GRP 1 , P 5 , P 9 , P 11 , P 12 , P 22 , P 23 , P 91
ASTM / ASME A 691 GRP1 CR , 1 1/4 CR , 2 1/4 CR , 5 CR , 9CR , 91.

===========================================================

➲ Nickel & Copper Alloy

RANGE : 15 NB UP TO 1200 NB IN SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS

FORM : SEAMLESS / ERW / WELDED IN ROUND & SQUARE .

Nickel Alloy :

ASTM / ASME SB 163 UNS 2200 ( NICKEL 200 )
ASTM / ASME SB 163 UNS 2201 (NICKEL 201 )
ASTM / ASME SB 163 / 165 UNS 4400 (MONEL 400 )
ASTM / ASME SB 464 UNS 8020 ( ALLOY 20 / 20 CB 3 )
ASTM / ASME SB 704/705 UNS 8825 INCONEL (825)
ASTM / ASME SB 167 / 517 UNS 6600 (INCONEL 600 )
ASTM / ASME SB 167 UNS 6601 ( INCONEL 601 )
ASTM / ASME SB 704 /705 UNS 6625 (INCONEL 625)
ASTM / ASME SB 619/622/626 UNS 10276 ( HASTELLOY C 276 )

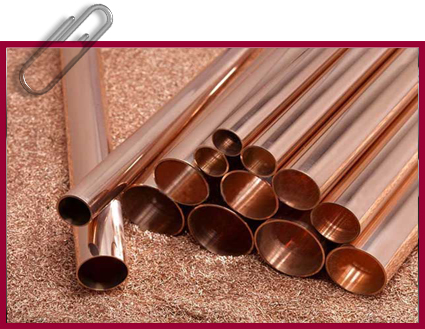

Copper Alloy :

ASTM / ASME SB 111 UNS NO. C 10100 , 10200 , 10300 , 10800 , 12000,12200, 70600 , 71500 .
ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

===========================================================

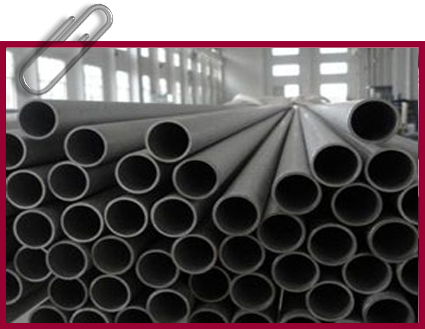

➲ Hastelloy

Grades : Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000

Type: Seamless / Erw / Welded/ Fabricated

Standard :

Hastelloy Seamless Pipe
Hastelloy ERW Pipe

This range is used in :

• Petrochemicals Plants
• Oil Refineries
• Fertilizers Plants
• Sugar Mills
• Chemical Plants
• Pharmaceuticals
• Textile Machinery

===========================================================

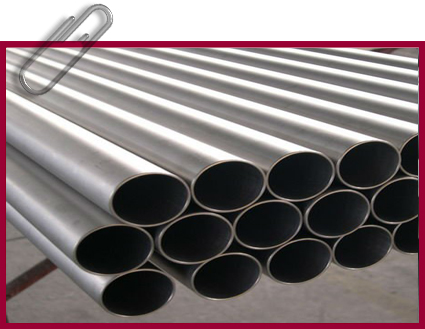

➲ Inconel

Grades : Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750

Type: Seamless / Erw / Welded/ Fabricated

Range: 15 NB up to 600 NB in SCH 5S, 10S, 10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS

Form: Round, Square, Rectangular, Hydraulic etc.

Length: Single Random, Double Random & Cut Length

End: Plain End, Beveled End, Threaded

This range is used in :

• Petrochemicals Plants
• Oil Refineries
• Fertilizers Plants
• Sugar Mills
• Chemical Plants
• Pharmaceuticals
• Textile Machinery

===========================================================

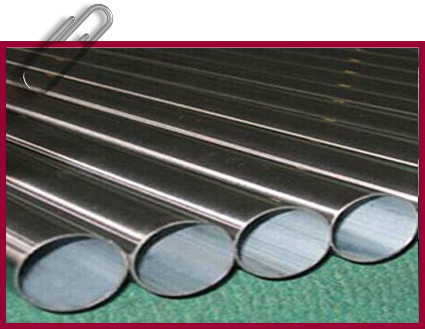

➲ Incoloy

Grades : Incoloy 800, incoloy 825, Incoloy 925, Incoloy a-286, Incoloy DS

Type: Seamless / Erw / Welded/ Fabricated

Standard : ASTM B407, ASTM B829, ASTM B514, ASTM B775, ASTM B515, ASTM B751

This range is used in :

• Petrochemicals Plants
• Oil Refineries
• Fertilizers Plants
• Sugar Mills
• Chemical Plants
• Pharmaceuticals
• Textile Machinery

===========================================================

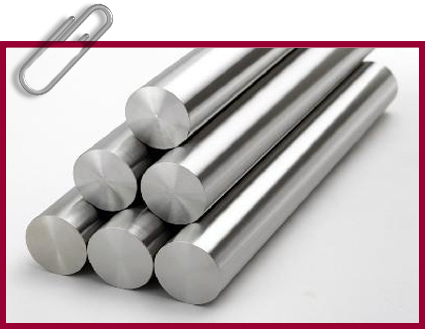

➲ Monel

Grades : Monel 400, Monel k500

Type: Seamless / Erw / Welded/ Fabricated

Form: Round, Square, Rectangular, Hydraulic etc.

Length: Single Random, Double Random & Cut Length

End: Plain End, Beveled End, Threaded

The salient features are as follows :

• Hot Dipped Galvanizing
• Epoxy & Fbe Coating
• Electro Polish
• Draw & Expansion

===========================================================

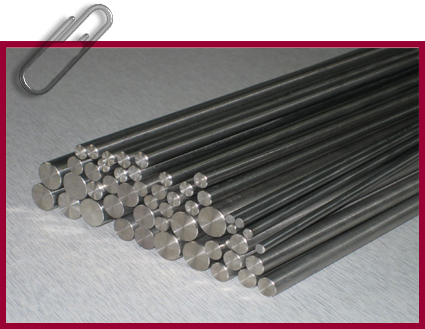

➲ Titanium

Grades : Grade 1, Grade 2, Grade 3, Grade 4, Grade 5, Grade 7, Grade 9, Grade 23

Type: Seamless / Erw / Welded/ Fabricated

Range : 15 NB UP TO 600 NB IN SCH 5S, 10S, 10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 etc.

Form: Round, square, rectangular, hydraulic etc.

Length: Single Random, Double Ranidom & Cut Length

End: Plain End, Bevelled End, Treaded

===========================================================

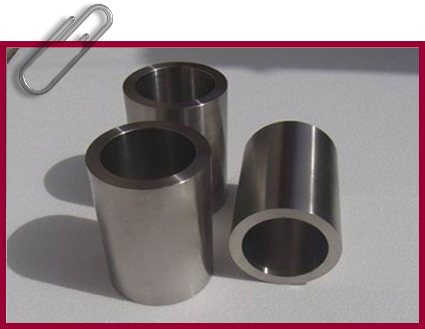

➲ Tantalum

Grades : Grade 1, Grade 2, Grade 3, Grade 4, Grade 5, Grade 7, Grade 9, Grade 23

Range : 15 NB up to 1500 NB in 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS available with NACE MR 01-75

Standard : ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE

Types : Socket Weld, Slip On, Blind, Lapped, Screwed, Weld Neck, Long Weld Neck, Reducing, Spectacle, Ring Joint

Features:

• Dimensional accuracy
• High strength
• Durability
• Corrosion resistance
• Excellent finish
